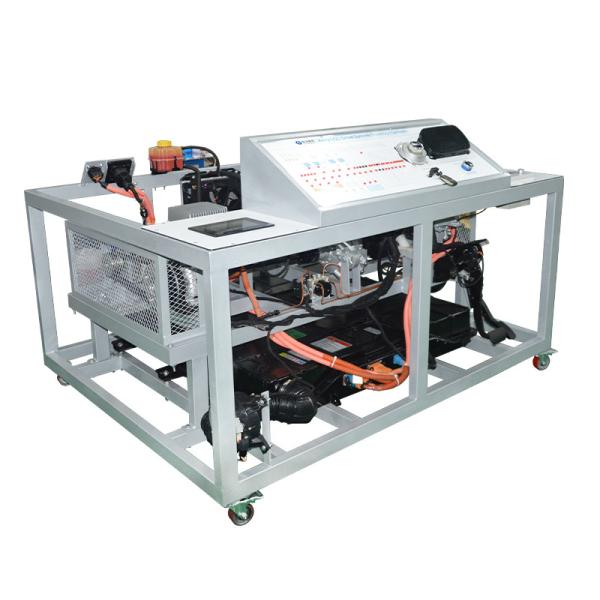

Ev Drive System Training Platform Educational Equipment

  • 1
  • 2

Brand Name : Zhongcai

Model Number : Cherry EQ1 ZC-QCG50A

Certification : ISO9001/CE

Place of Origin : Guangdong,China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 15-25Work Days

Packaging Details : Wooden Box

Voltage : 220V

Color : Customer booking

Material : Steel

Usage : Training and Education

Features : Simulation of New Energy Automotive System

Frequency : 50Hz

Power Source : Electric

Application : Automotive Industry

Type : Training Equipment

Contact Now

Functional characteristics

  1. The real runnable pure electric vehicle drive system fully demonstrates the composition structure and working process of pure electric vehicle drive system. The Drive System Training Platform provides a comprehensive hands-on learning experience for users.
  2. The Drive System Training Platform panel adopts 4mm thick corrosion-resistant, trauma-resistant, pollution-resistant, fireproof, moisture-proof senior aluminum plastic plate, the surface is treated by special technology spraying primer; the panel is printed with colorful circuit schematic diagram painted by UV plate that never fades.
  3. The training platform panel is installed with electric car instrumentation, which can display the power transmission process, vehicle speed, voltage, temperature, etc., and electric control system fault indicator and other parameter changes in real time.
  4. There are test terminals installed on the panel of the training platform, which can directly detect the electrical signals of the control unit pins on the panel, such as resistance, voltage, current, frequency signals, etc.
  5. The training platform is equipped with electronic throttle control device, which is convenient for acceleration and deceleration of pure electric vehicle drive system.
  6. The training platform is equipped with power main switch, rotating parts shield and other installation protection devices.
  7. The base of the training platform is welded with steel structure, and the surface is treated with spraying technology, with self-locking casters, which is flexible, safe, reliable and durable.

Basic configuration

Name

Specification

Unit

Testing control panel

with various testing terminals, color circuit diagram and working principle schematic, 1200*900mm

1set

Combination instrumentation

Electric car special

1pcs

Ignition switch


1set

Active balance battery management system


1set

New energy vehicle controller

1set

Motor Controller

Matching with motors

1set

On-board charger and charging interface

Matching with motors

1set

New energy vehicle controller

1set

Motor Controller

Matching with motors

1set

Brushless DC motor drive system

1set

Half-axle brake system

Electric car special

1set

Gear switch

Electric car special

1set

Throttle Control Device

Electric car special

1set

DC Contactor

DZ47

1set

Power switch

1set

Mobile platform (with self-locking casters)

1240×600×1700mm(L×W×H)

1set

Fuse box

1set

Warranty card / certificate of conformity

1set

Teacher's manual

1set

Fault simulation and troubleshooting device

1set

Ev Drive System Training Platform Educational Equipment

Ev Drive System Training Platform Educational Equipment

Ev Drive System Training Platform Educational Equipment

Ev Drive System Training Platform Educational Equipment

Ev Drive System Training Platform Educational Equipment

Ev Drive System Training Platform Educational Equipment

Ev Drive System Training Platform Educational Equipment

FAQ

Q1: Are you a trading company or manufacturer?
We are a manufacturer, our equipment is superior in quality and reasonable in price.

Q2: May we visit your factory?
Yes, welcome to our factory, our factory is in China Guangzhou City, it is near the Guangzhou Baiyun airport, very convenient to come here.

Q3: How to ensure the quality?
Our technicians are experts in this industry.Each assembly part has a controller to ensure stable operation of the equipment.

Q4: What is the warranty period and the delivery period?
Warranty period:12 months Delivery period: Usually 30 days

Q5: What is you terms of payment?
50% in advance, balance before shipment, we accept T/T, Cash.
