Six Types of Automotive Engine Ignition System Training Panel

Name: Six Types of Automotive Engine Ignition System Training Panel
Brand: Zhongcai
Price: 1 USD

Brand Name : Zhongcai

Model Number : ZC-QCD18A

Certification : ISO9001/CE

Place of Origin : Guangdong,China

MOQ : 1

Price : Negotiatable

Payment Terms : T/T

Supply Ability : 1000 Sets

Delivery Time : 15 Work Days

Packaging Details : Wooden Box

Function : Teaching

Suitable For : Technical Schools, Training Centers, Workshops,Collage

Type : Training Platform

Feature : Education Training

Working Temperature : -40 ℃~ + 50 ℃

Working Voltage : DC 12V

External Power Supply : AC 220V ± 10% 50Hz

Size : 1740*700*1700mm

Contact Now

Six Types Of Automotive Engine Ignition System Training Panel

Product Description:

Engineered for dynamic education, this Six Types Of Automotive Engine Ignition System Training Panel allows users to simulate and compare the working principles of six ignition systems side by side. Learners can activate tactile switches to observe voltage changes in the Hall sensor circuit, monitor magnetic field fluctuations in inductive systems, or trace signal paths in distributor-free configurations. Integrated LED indicators and real-time data displays enhance understanding of ignition timing, coil charging, and spark plug activation, making complex concepts accessible for both beginners and advanced technicians.

Technical Parameters:

Customizable	OEM
Training Materials	Steel
Type	Training Platform
Suitable For	Technical Schools, Training Centers, Workshops, College
Size	17407001700mm
Feature	Education Training
Function	Teaching
Training Level	Beginner To Advanced

Applications:

Tailored for hands-on learning, the ZhongCai ZC-QCD18A Six Types Of Automotive Engine Ignition System Training Panel includes simulated fault modes to teach critical troubleshooting skills. Educators can introduce issues such as weak spark generation, sensor misalignment, or circuit interruptions, challenging students to diagnose and resolve problems using multimeters, oscilloscopes, and diagnostic software. This interactive approach bridges theoretical knowledge with practical expertise, preparing learners to address common ignition system failures in automotive repair environments.

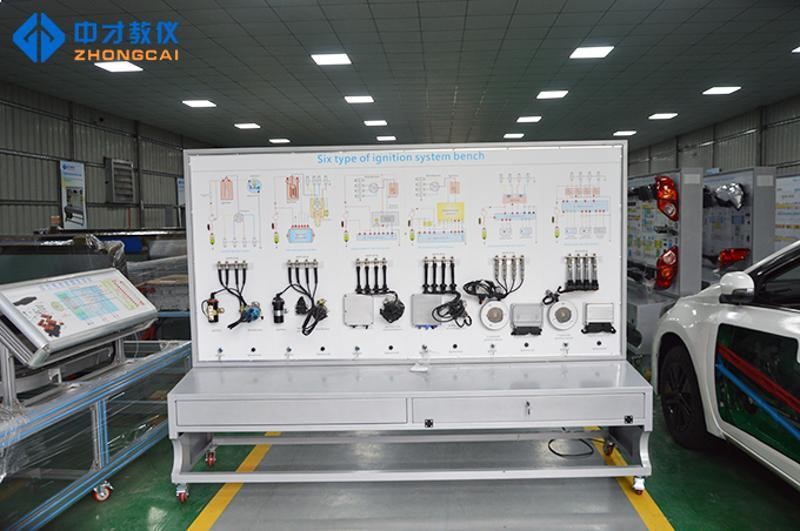

Six Types of Automotive Engine Ignition System Training Panel

Six Types of Automotive Engine Ignition System Training Panel Images
