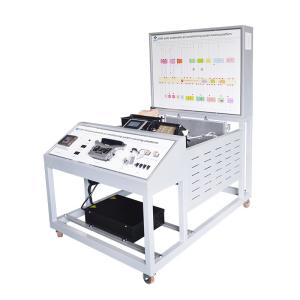

Auto Automatic Air Conditioning System Training Equipment Effective Learning

BYD New Energy Automotive Air Conditioning Training System – Technical Features

1. Modular Design for Hands-on Learning

• The pure electric vehicle training system adopts a modular structure, integrating key components such as the electric compressor, condenser, HVAC assembly, refrigerant lines, PTC heater, coolant hoses, air ducts, and AC control unit onto a professional base with an operation panel.
• The base features low-voltage signal wiring slots and high-voltage output channels, all labeled with safety warnings for secure training.
• High-voltage and low-voltage circuits are clearly separated, ensuring compliance with EV safety standards while facilitating component recognition and testing.

2. OEM Wiring & Real Vehicle Diagnostics

• The automotive air conditioner training system retains the original vehicle wiring harness, with parallel test connectors installed next to each plug for measurement.
• Pin numbers on test connectors match OEM circuit diagrams, enabling accurate signal detection for the motor drive system, instrument cluster, and brake system.
• All control units communicate via the original CAN network, supporting real-time data stream analysis and OBD-II diagnostics (e.g., fault code reading/clearing).

3. Intelligent Fault Training & Assessment

• Dual wireless terminals (instructor + student) enable interactive fault simulation and troubleshooting:
• Instructor-side: Set faults via WiFi-connected mobile devices, with options for open/short circuits, intermittent faults (≥10 types), and mechanical faults (≥6 points, via replaceable fuses).
• Student-side: Diagnose faults using mobile learning terminals, with auto-scored assessments stored in the system.
• Advanced features: Password-protected fault editing, timed exams, fault recovery tests, and performance tracking per student.
• Enhances real-world fault-handling skills through wireless (WiFi) and hardwired fault simulations.

Product Features

FAQ

Q1: Are you a trading company or manufacturer?
We are a manufacturer, our equipment is superior in quality and reasonable in price.

Q2: May we visit your factory?
Yes, welcome to our factory, our factory is in China Guangzhou City, it is near the Guangzhou Baiyun airport, very convenient to come here.

Q3: How to ensure the quality?
Our technicians are experts in this industry.Each assembly part has a controller to ensure stable operation of the equipment.

Q4: What is the warranty period and the delivery period?
Warranty period:12 months Delivery period: Usually 30 days

Q5: What is you terms of payment?
50% in advance, balance before shipment, we accept T/T, Cash.
